Does the RTX 3070 have 12 pins or 8 pins? – 3070 Power Connector


The NVIDIA GeForce RTX 3070 is a high-end graphics card that provides gamers and content creators exceptional performance and graphics capabilities. One of the critical features of this card is its power connector, which has been a topic of discussion among enthusiasts and gamers alike. The NVIDIA GeForce RTX 3070 is one of the latest and most powerful graphics processing units (GPUs) to hit the market. A vital feature of this GPU is its power connector, which has caused some confusion among users. Some users wonder whether the RTX 3070 has a 12-pin or 8-pin power connector.

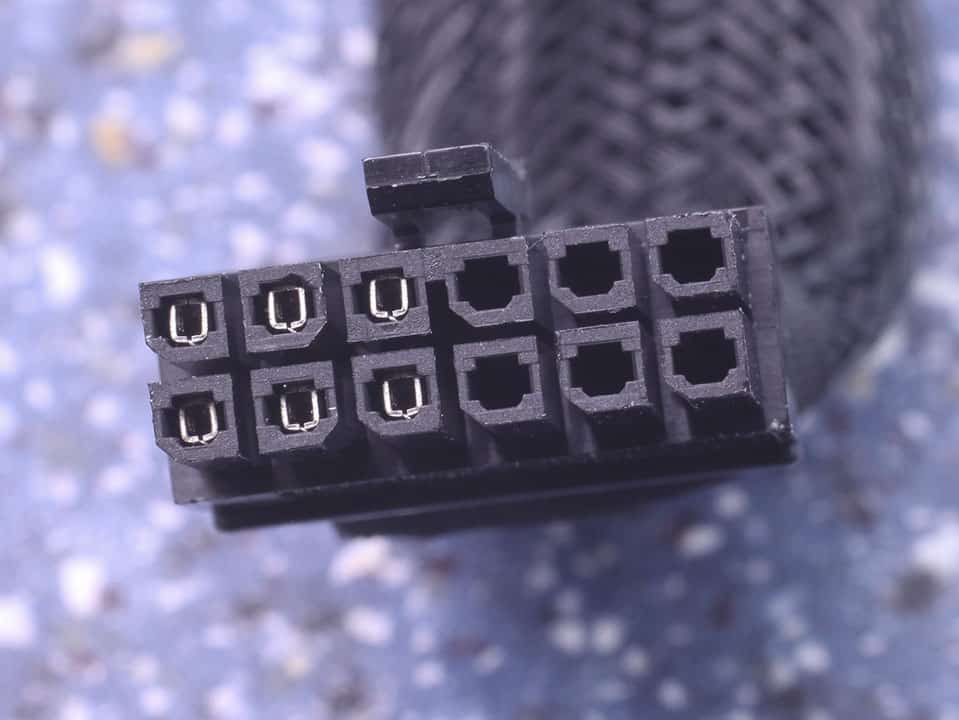

RTX 3070

Does the RTX 3070 have 12 pins or eight pins?

The NVIDIA GeForce RTX 3070 has a 12-pin connector, and a 12-pin to 8-pin dongle is bundled with the card. The higher-end RTX 3090 and RTX 3080 also have 12-pin power connectors. However, these GPUs come with a 12-pin to a 2×8-pin adaptor that allows users to connect them to two standard 8-pin power connectors on their PSU.

For clarity, the RTX 3070 has a 12-pin power connector. This is a unique feature, as most GPUs have an 8-pin or a 6-pin power connector. The 12-pin power connector is designed to deliver sufficient power to the GPU, allowing it to run optimally without downtime or performance issues. In addition, it is designed to provide power more efficiently, thereby reducing the GPU’s overall power consumption.

One question that comes to mind when considering the 12-pin power connector is whether you need a separate power supply unit (PSU) to connect it to. The answer is no. The 12-pin power connector comes with a bundled 12-pin to 8-pin dongle that allows users to connect the GPU to a standard 8-pin power connector on their PSU. You can use the RTX 3070 with your current PSU without additional upgrades.

It’s important to note that while the 12-pin power connector is unique to the RTX 3070, it is not exclusive to this GPU. The higher-end RTX 3090 and RTX 3080 also have 12-pin power connectors. However, these GPUs come with a 12-pin to a 2×8-pin adaptor that allows users to connect them to two standard 8-pin power connectors on their PSU.

Regarding power consumption, the RTX 3070 has a rated power draw of 220 watts. This means that the 8-pin power connector can deliver up to 150 watts, which is more than sufficient to power the GPU. However, you may require more power if you plan on overclocking the GPU or running performance-intensive applications. You may need to connect the 12-pin power connector directly to your PSU using a 12-pin cable.

The FRTX 3070 does indeed have a 12-pin power connector, which differs from the 8-pin connector on previous-generation graphics cards like the GeForce GTX 1080 Ti. The 12-pin connector on the RTX 3070 is designed to provide more power to the card, enabling it to handle the increased performance demands of modern games and applications.

However, there is a catch. Unlike the higher-end RTX 3080 and 3090 graphics cards, which come with a 12-pin to 2×8-pin adapter, the RTX 3070 comes bundled with a 12-pin to 1×8-pin adapter. Users must connect a single 8-pin connector to the card rather than two 8-pin connectors.

While some users may be concerned that a single 8-pin connector may not provide enough power for the RTX 3070, it is essential to note that NVIDIA has designed the card with this in mind. The RTX 3070 has a lower TDP (thermal design power) of 220 watts compared to the RTX 3080 and 3090, which have TDPs of 320 watts and 350 watts, respectively. This means the RTX 3070 requires less power overall, and a single 8-pin connector should be more than sufficient.

It is worth noting that the 12-pin power connector on the RTX 3070 is a new design from NVIDIA, and it may require users to purchase a new power supply unit (PSU) or adapter to use with their graphics card. However, most modern PSUs should have the necessary connectors to support the RTX 3070 out of the box, and the included 12-pin to 8-pin adapter should make it easy to connect the card to existing PSUs.

In conclusion, the NVIDIA GeForce RTX 3070 has a 12-pin power connector bundled with a 12-pin to 1×8-pin adapter. While this may differ from what some users are used to with previous-generation graphics cards, it should not cause significant issues when powering the card. Ensure your PSU can provide enough power to your system before upgrading to a high-end graphics card like the RTX 3070.
